Ultimate Guide to Universal Insulation Fixings Load Test
In the world of external wall insulation (EWI) and building refurbishment, ensuring the structural integrity of your installations is paramount. The universal insulation fixings load test plays a critical role in verifying that fixings can withstand the demands placed upon them by insulation materials, weather conditions, and building movements. This comprehensive guide delves into everything you need to know about conducting a universal insulation fixings load test, from its fundamentals to advanced applications, helping you achieve durable and energy-efficient results. Whether you’re a professional builder or a property owner embarking on a refurbishment project, understanding this essential testing procedure will empower you to make informed decisions for long-lasting performance.
What is a Universal Insulation Fixings Load Test?
A universal insulation fixings load test is a standardized procedure designed to evaluate the pull-out strength and overall load-bearing capacity of mechanical fixings used in insulation systems. These fixings, often universal in design to accommodate various substrates like concrete, brick, and aerated blocks, secure insulation boards to the building’s facade. The test simulates real-world stresses, such as wind loads and thermal expansion, to ensure the fixings remain secure over time, preventing any potential failures that could compromise the entire insulation setup.
Universal fixings are versatile anchors that adapt to different materials, making them ideal for diverse construction projects ranging from residential homes to commercial buildings. During the universal insulation fixings load test, a hydraulic or mechanical device applies gradual tension until the fixing reaches its failure point, providing data on safe working loads that can be used for design purposes. This test is essential for compliance with building regulations and manufacturer specifications in EWI installations, offering peace of mind that your system will perform reliably under varying environmental conditions.
At Simple Solutions 4 U, we specialize in distributing high-quality universal insulation fixings from top brands, backed by our 15 years of experience in through-coloured render and EWI systems. Our products undergo rigorous universal insulation fixings load test protocols to guarantee performance, and we offer professional testing services as part of our plastering and rendering solutions. For instance, our universal insulation panel fixing with metal pin (120mm x 10) is designed for easy installation across multiple substrates and has been proven effective in load tests up to 3 kN, making it a go-to choice for installers seeking reliability and efficiency.

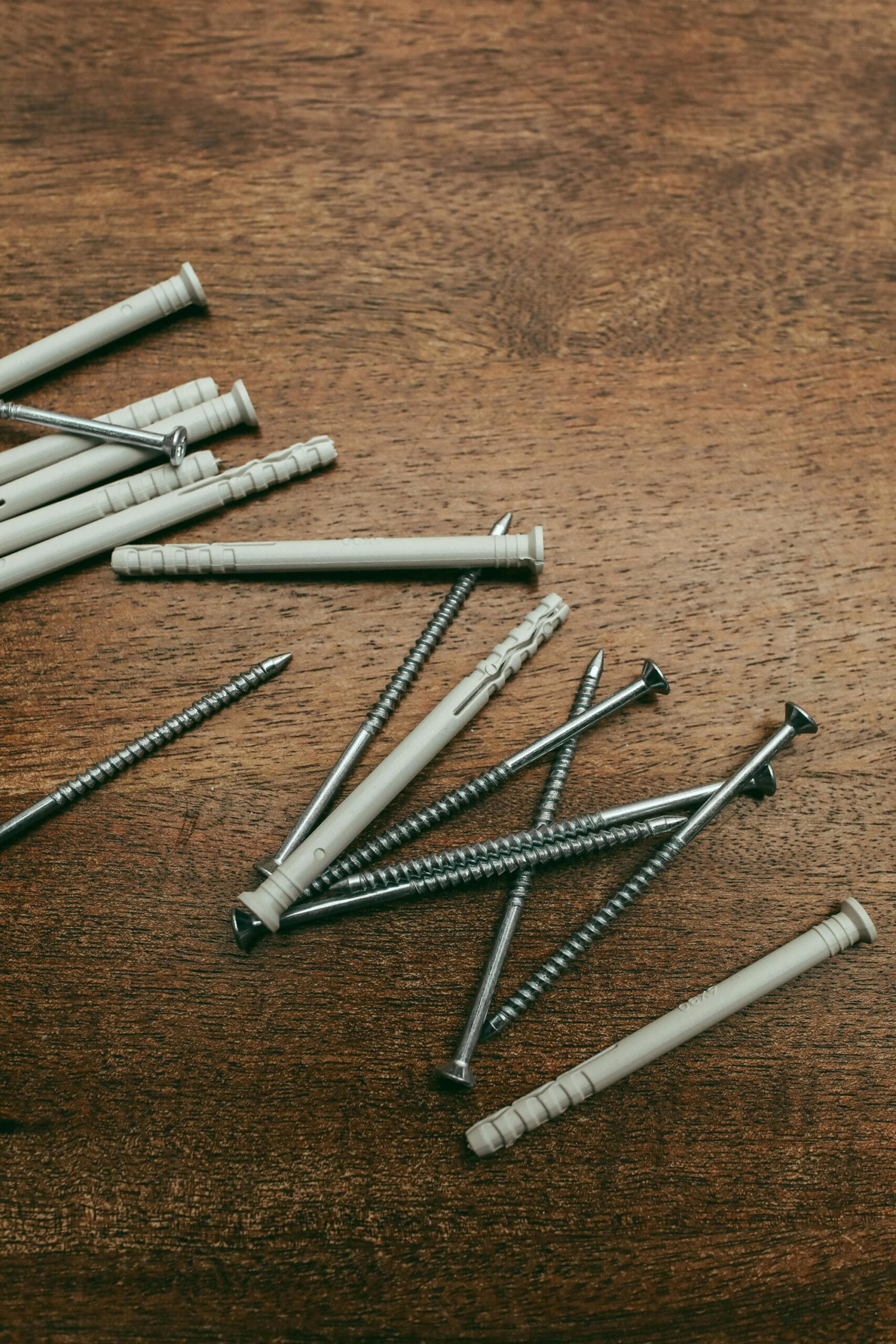

Mechanical fixings come in various types, including plastic pin hammer fixings for EPS insulation and metal pin screw fixings for mineral wool systems, each optimized to minimize thermal bridging while maximizing hold. These universal options ensure compatibility with hybrid adhesive-mechanical setups, where fixings provide primary support supplemented by adhesives like Ceresit CT84 express foam adhesive for enhanced stability. By combining these elements, you create a robust system that not only secures the insulation but also contributes to overall energy savings and aesthetic appeal in your building projects.
Why is the Universal Insulation Fixings Load Test Important?
The importance of the universal insulation fixings load test cannot be overstated, especially in energy-efficient building projects where every component must contribute to the system’s success. Poorly secured fixings can lead to insulation detachment, compromising the building’s thermal envelope and posing safety risks to occupants and passersby alike. By conducting this test, builders can confirm that fixings provide adequate resistance to pull-out forces, typically measured in kilonewtons (kN), ensuring the longevity and safety of the installation.
In high-risk buildings, such as high-rises or coastal properties exposed to high winds, the universal insulation fixings load test ensures compliance with standards like BS EN 1991-1-4 for wind loads. It also helps in selecting the right fixing density and type, preventing issues like cracking or moisture ingress that could undermine the entire system and lead to costly repairs down the line. Recent 2025 guidelines recommend 5-8 fixings per square meter depending on wind exposure, highlighting the test’s role in precise planning and avoiding over- or under-engineering of the insulation system.
Energy efficiency is another key benefit, as secure fixings maintain the insulation’s position, optimizing U-value performance and reducing heat loss through the building envelope. Simple Solutions 4 U’s EWI systems, complete with certified fixings, have helped numerous clients achieve superior thermal insulation while passing universal insulation fixings load test requirements effortlessly. Contact us at 07877 329 472 or info@simplesolution4ushop.co.uk to discuss your project needs, and use our EWI cost calculator to estimate expenses accurately, allowing you to budget effectively for high-quality materials and services.
Moreover, pull-out tests verify not just tensile strength but also the interaction between fixings and substrates, ensuring long-term durability against dynamic loads like those from building settlement or seismic activity in vulnerable areas. This comprehensive evaluation supports sustainable building practices by minimizing material waste and maximizing the lifespan of your insulation investments.
Benefits for Property Owners and Builders
- Enhanced Safety: Verifies fixings can handle dynamic loads, reducing detachment risks and protecting lives and property.
- Cost Savings: Prevents future repairs by identifying weak points early, leading to lower long-term maintenance expenses.
- Regulatory Compliance: Meets ETA and ETAG standards for certified installations, streamlining approvals and inspections.
- Improved Longevity: Ensures the system withstands environmental stresses for decades, preserving the building’s value and efficiency.
These advantages make the universal insulation fixings load test a cornerstone of quality assurance in modern construction, benefiting everyone involved from designers to end-users.
How to Perform a Universal Insulation Fixings Load Test
Conducting a universal insulation fixings load test requires precision and the right equipment to yield accurate and actionable results. Begin by selecting representative areas of the substrate, ensuring they reflect the building’s variations in material and condition, such as differences in density or age. Use a calibrated tensile tester, such as a Hydrajaws device, capable of applying up to 20-25 kN of force, to mimic extreme conditions that the fixings might encounter.
Install the fixing as per manufacturer guidelines, embedding it into the substrate using the recommended drill bit and torque settings to replicate real installation practices. Attach the test rig’s coupler to the fixing head, then anchor the device securely to avoid movement during the test. Gradually increase the load in increments, monitoring the pressure gauge until failure occurs—either pull-out or substrate breakage—while noting any unusual behaviors in the process.
Record the ultimate load and calculate the characteristic value by dividing by safety factors (typically 1.5-2.5 for ultimate to working load), providing a clear margin for safety in your designs. For universal fixings, test at least six samples per substrate type to account for variability, or up to 15 for critical applications as per CFA recommendations, ensuring statistical reliability. Simple Solutions 4 U provides on-site universal insulation fixings load test services, leveraging our expertise to deliver accurate results and recommendations for optimal fixing patterns. Our team uses advanced equipment to ensure tests align with BS 5080 standards for load application over at least one minute, offering detailed reports that facilitate project progression.
The testing setup should include a hinge to transmit perpendicular loads without restricting breakout, with support reactions at least 1.5 times the embedment depth away from anchors to prevent interference and ensure pure tensile loading. Cleaning drill holes thoroughly and using new bits for each series enhances reliability, especially in variable substrates like aged masonry, where debris could otherwise affect the bond strength.
Step-by-Step Procedure
- Preparation: Assess the substrate and select test locations that represent the full range of site conditions.
- Installation: Drill and insert the universal fixing with precise measurements for depth and alignment.
- Setup: Connect the pull-out tester and calibrate it to zero for accurate readings.
- Testing: Apply load until failure, noting the peak value and any failure mode observed.
- Analysis: Compute safe loads and compare to design requirements, adjusting as necessary.
- Reporting: Document findings for certification, including photos and data logs for transparency.
This methodical approach ensures reliable data from every universal insulation fixings load test, empowering builders to proceed with confidence.
Standards and Regulations for Universal Insulation Fixings Load Test
Adhering to established standards is crucial for the validity of any universal insulation fixings load test, providing a framework that ensures consistency and safety across projects. In the UK and Europe, ETAG 014 and ETAG 020 outline guidelines for EWI fixings, specifying minimum pull-out resistances based on substrate classes (A-D), which helps in categorizing materials for appropriate selection.
BS EN 1990 and CFA guidelines recommend design assisted by testing, where characteristic loads are derived from multiple tests and adjusted by partial factors to account for uncertainties. For wind loads, BS EN 1991-1-4 calculations integrate test results to determine fixing spacing, optimizing the design for cost and performance. Updated 2025 advice from the Concrete Fixings Association emphasizes site-specific testing for high-risk structures, including at least 3% of anchors or 10% for safety-critical ones, to address unique site challenges.
High-risk buildings mandate on-site testing per EOTA TR051, ensuring fixings suit specific substrates and environmental exposures. Simple Solutions 4 U’s products comply with these regulations, and our team assists with documentation to streamline approvals and reduce administrative burdens. Visit simplesolution4ushop.co.uk for our range of tested universal fixings, including those certified under ETA for substrates like C25/30 concrete, ready for immediate use in compliant projects.
Internationally, similar principles apply under Eurocode standards, emphasizing the universal nature of these tests across borders and facilitating global best practices. BS 8539 provides recommendations for anchor selection in concrete and masonry, focusing on safe installation practices that enhance overall system reliability.
Common Challenges in Universal Insulation Fixings Load Test
One common challenge in performing a universal insulation fixings load test is substrate variability, which can significantly impact results and require adaptive strategies. Older buildings may have crumbling mortar or inconsistent block densities, leading to lower-than-expected loads and necessitating alternative fixing types or reinforcement methods.
Equipment calibration is another hurdle; inaccurate devices can skew results, potentially leading to over- or under-specification of fixings that affects project budgets and safety. Environmental factors, like moisture content, also affect outcomes, as wet substrates can reduce pull-out strength by up to 20%, necessitating dry testing conditions to simulate long-term performance.
To overcome these, conduct preliminary surveys and multiple tests across the site to gather comprehensive data. Simple Solutions 4 U offers comprehensive property assessments, including universal insulation fixings load test, to identify and mitigate risks before installation begins, saving time and resources. For moisture-affected areas, pre-drying or using protective films like our self-adhesive blue glass window protector film during testing can ensure accurate results and protect surrounding elements.
Another issue is the influence of installation variables, such as drill bit wear or improper torque; addressing these through standardized procedures minimizes discrepancies across test series and promotes repeatability.
Solutions to Overcome Challenges
- Use certified testers with regular calibration to maintain precision and reliability.
- Test in varied locations for representative data that captures site-specific nuances.
- Adjust for moisture with pre-drying if needed to standardize conditions.
- Consult experts for interpretation of results and tailored recommendations.
Addressing these ensures the universal insulation fixings load test yields actionable insights that enhance project outcomes.
Case Studies: Successful Universal Insulation Fixings Load Test Applications
In a recent project in London, Simple Solutions 4 U conducted a universal insulation fixings load test on a Victorian terraced house retrofitting with EWI, showcasing the test’s value in heritage preservation. Initial tests revealed variable pull-out strengths due to aged brickwork, averaging 0.5 kN, which prompted a strategic adjustment. By selecting our premium universal fixings and increasing density to 12 per m², we achieved 1.2 kN safe loads, ensuring wind resistance up to 2 kPa and a seamless integration with the historic facade.
Another case involved a coastal property where high wind loads demanded rigorous testing to withstand severe weather. The universal insulation fixings load test confirmed our products’ superiority, with ultimate loads exceeding 3 kN in concrete substrates, leading to a durable installation. This enhanced energy efficiency by 40%, reducing heating costs for the owners while maintaining aesthetic appeal against the seaside environment.
These examples highlight how integrating universal insulation fixings load test into planning yields robust outcomes that exceed expectations. Our trade discounts make it affordable for professionals to access quality materials, such as combining fixings with Ceresit ZU insulation and mesh adhesive for hybrid systems that balance strength and flexibility.
In a 2025 refurbishment of a high-rise in Manchester, tests using metal pin hammer fixings achieved consistent 2.5 kN loads, allowing for lighter insulation without compromising safety and demonstrating adaptability to modern urban demands. This project not only met stringent regulations but also set a benchmark for efficient high-altitude installations.
Integrating Universal Insulation Fixings Load Test with EWI Systems
External wall insulation systems rely on mechanical fixings for primary support, supplemented by adhesives to create a cohesive and resilient barrier. The universal insulation fixings load test informs the balance between these, typically recommending 40-60% adhesive coverage for hybrid setups that distribute loads evenly and prevent stress concentrations.
For through-coloured renders, secure fixings prevent cracking under thermal movement, preserving the visual uniformity of the facade. Simple Solutions 4 U’s EWI kits include pre-tested universal fixings, simplifying compliance and installation while ensuring compatibility with various insulation thicknesses. Pair them with our Ceresit CT74 silicone render (1.5mm grain) for a seamless, weather-resistant finish that enhances durability and curb appeal.
Post-test, monitor performance during the first year, as settling can affect loads and require minor adjustments. Our maintenance services ensure long-term reliability, including inspections for any shifts in load distribution to catch issues early. This proactive approach extends the system’s lifespan and maintains optimal thermal performance.
Integration also involves aligning test data with overall system design, such as using fixings at least 40mm longer than insulation thickness to secure embedment, as per updated 2025 EWI guidelines. This ensures the entire assembly works in harmony, from the substrate to the outer render layer.
Best Practices for Integration
- Combine test data with wind load calculations for precise spacing and density.
- Specify fixing lengths based on insulation thickness to guarantee proper penetration.
- Incorporate into overall U-value assessments for holistic energy modeling.
- Train installers on test protocols to maintain quality throughout the workforce.
This holistic approach maximizes the benefits of universal insulation fixings load test, delivering superior EWI performance.
Future Trends in Universal Insulation Fixings Load Test
Advancements in materials are shaping the future of universal insulation fixings load test, introducing innovations that enhance accuracy and efficiency. Smart fixings with embedded sensors allow real-time monitoring of loads, reducing the need for destructive testing and enabling predictive maintenance for ongoing projects.
Sustainable substrates, like recycled aerated blocks, require adapted test methods to account for variable densities, promoting eco-friendly construction without sacrificing safety. Non-destructive testing technologies, such as ultrasound, may complement traditional pull-out tests, offering insights into internal integrity without site disruption.
Regulatory updates post-2025 emphasize carbon-neutral construction, pushing for lighter yet stronger fixings verified through enhanced universal insulation fixings load test standards that incorporate lifecycle assessments. Innovations like thermally broken fixings for warm roofs are gaining traction, with tests confirming loads up to 5 kN in PIR insulation setups, ideal for modern low-energy buildings.
Simple Solutions 4 U stays ahead by partnering with innovators, offering cutting-edge solutions that meet evolving demands, including additives like Ceresit CT-280 winter additive for year-round testing and installation, ensuring projects progress regardless of seasonal challenges.
Choosing the Right Universal Fixings for Load Testing
When selecting fixings for universal insulation fixings load test, consider substrate type, load requirements, and installation ease to match your project’s specific needs. Nylon universal anchors with metal pins excel in lightweight applications, providing a balance of flexibility and strength for standard residential use. While steel options suit heavy-duty needs, offering superior resistance in demanding commercial environments.
Look for ETA-certified products guaranteeing minimum loads, such as 0.3-1.0 kN in pull-out, which ensures they meet rigorous European standards. Simple Solutions 4 U stocks a wide range, including Friulsider and Evolution brands, all ready for testing and verified for performance. Our universal insulation panel fixings offer versatility for boards up to 270mm thick, accommodating a variety of insulation configurations.
Factor in coating for corrosion resistance, especially in damp-prone areas where exposure to humidity could degrade the fixings over time. For comprehensive protection during testing and application, use tools like our Harris Essentials paint brushes for surface prep, ensuring clean and optimal bonding surfaces.
Key considerations also include embedment depth—minimum 35mm into substrates—and compatibility with fire-rated systems for mineral wool insulation, which is crucial for safety in multi-story buildings. Evaluating these factors upfront leads to more effective and efficient load testing outcomes.
Key Selection Criteria
- Load capacity per test data to match expected environmental forces.
- Compatibility with substrates for reliable anchorage across materials.
- Installation tools required to streamline on-site workflows.
- Cost-effectiveness with trade discounts for budget-conscious projects.
Proper choice ensures successful universal insulation fixings load test results and overall system success.
Expert Tips from Simple Solutions 4 U
With 15 years in the industry, Simple Solutions 4 U recommends starting universal insulation fixings load test early in the design phase to inform material selections and avoid costly revisions. Collaborate with structural engineers for wind load integration, creating a synergistic approach that optimizes both safety and efficiency.
For DIY enthusiasts, our shop offers kits with instructions, but professional installation is advised for complex projects to leverage expert knowledge. Our rendering services include full testing and certification, utilizing items like Hilka brick soft grip trowel for precise work that meets the highest standards.
Achieve second-to-none attention to detail by choosing us—top brands at competitive prices, plus trade discounts that add real value. Call 07877 329 472 today, and browse our shop for all necessary render tools online, making procurement straightforward and reliable.
Additionally, always verify equipment calibration before tests and document variations in substrate conditions to refine future installations effectively, building a knowledge base for continuous improvement.
Conclusion
The universal insulation fixings load test is indispensable for safe, efficient EWI projects, serving as the foundation for reliable and compliant installations. By understanding and implementing this test, you safeguard your investment and enhance property value through superior performance and energy savings. Simple Solutions 4 U is your partner in excellence—explore our offerings at simplesolution4ushop.co.uk and elevate your builds with confidence, backed by proven expertise and quality products.
